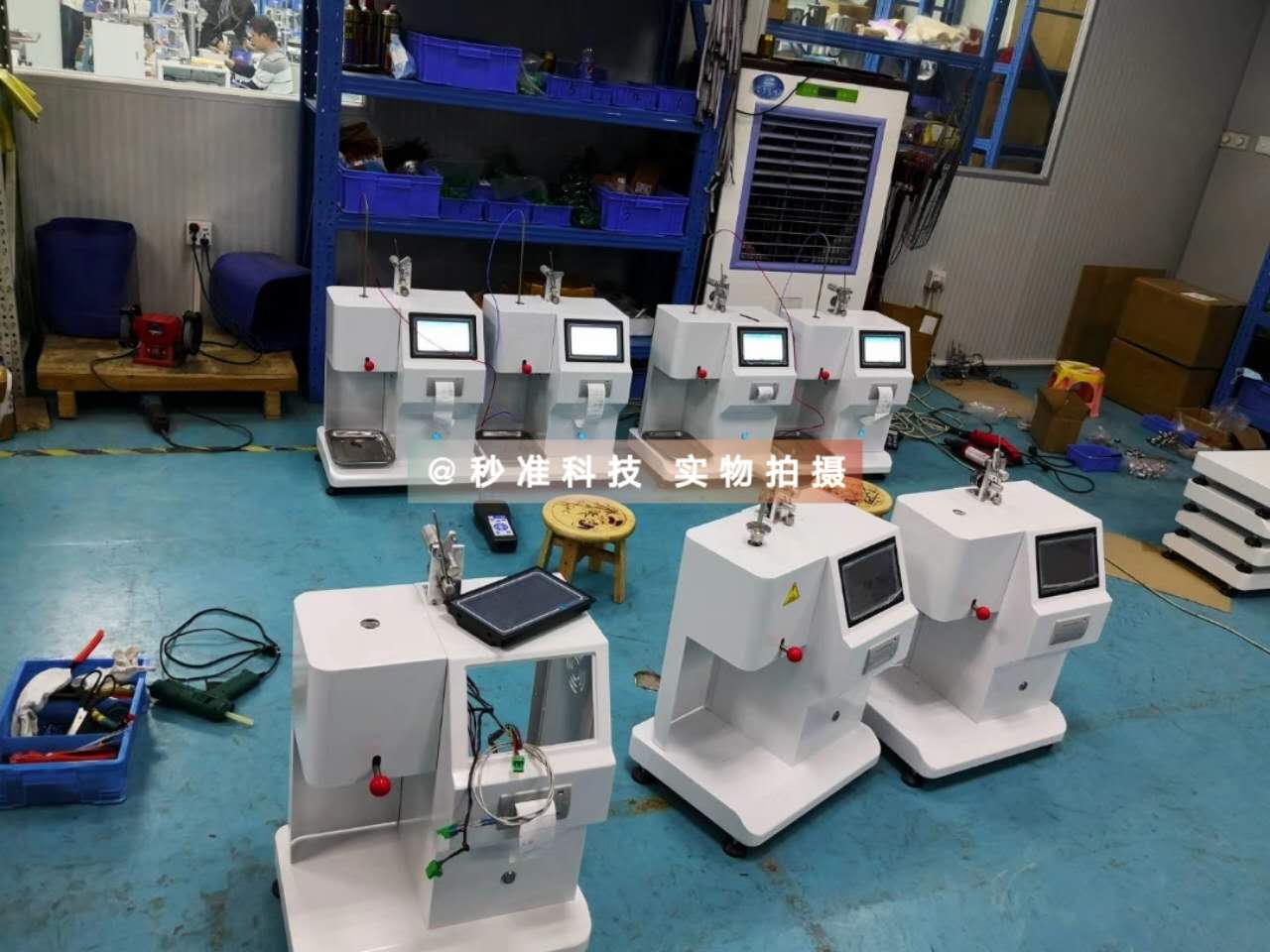

MAYZUM factory produces various specifications of melt index meters, which are especially suitable for the determination of melt-blown PP material melt index. The data is accurate, and it is manufactured in strict accordance with national standards and includes third-party measurement. Source manufacturers can provide OEM services for distributors

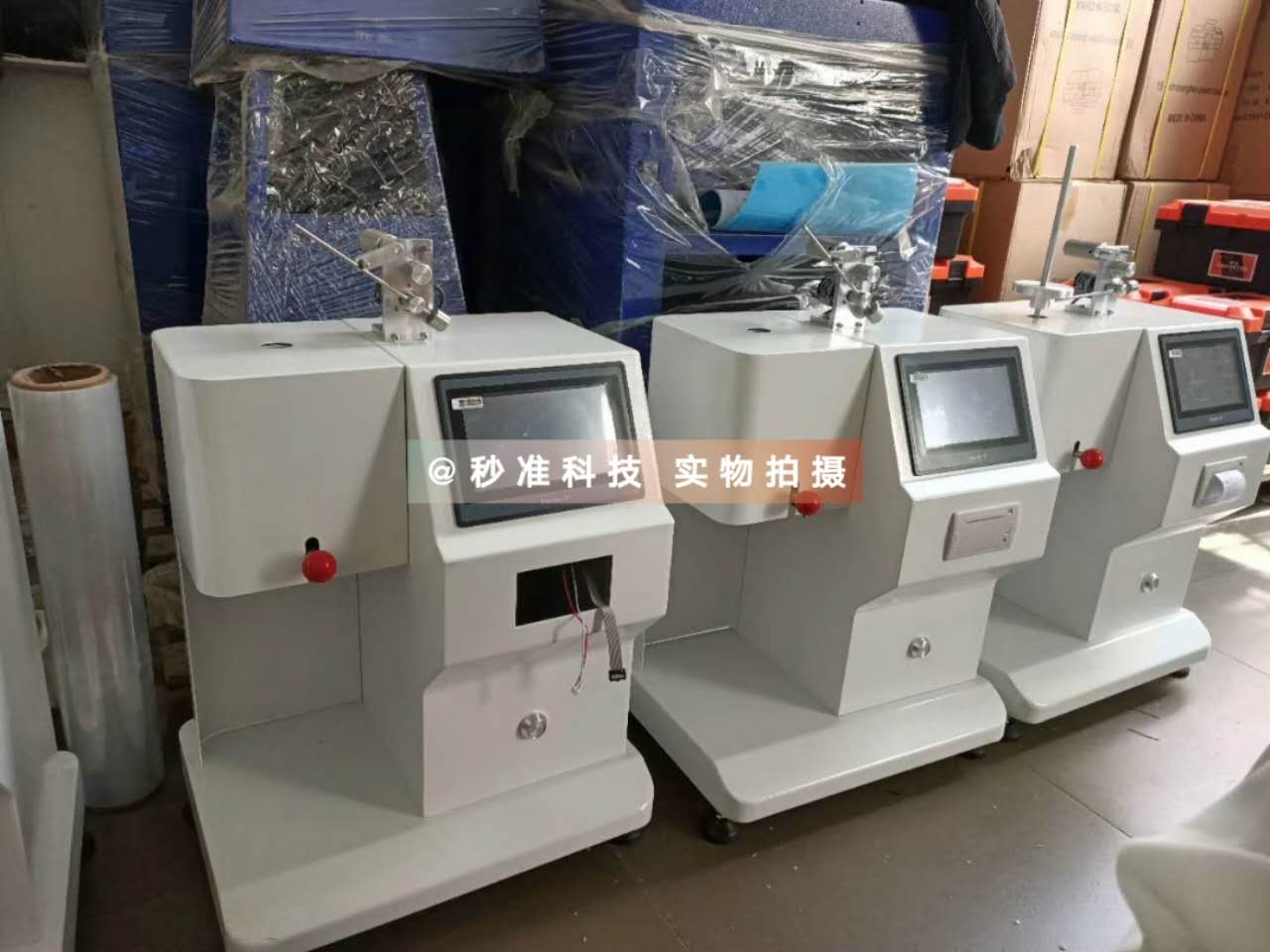

High-precision Melt Index Meter
(dual temperature control, high precision, special for high melt index)
Model: MAY-43
Introduction:
The melt index meter meets the standard requirements of GB/T3682-2000. The main parameters of the melt index meter also meet the requirements of ISO1133-97, ASTM1238, JIS and other standards. It can be used for polyethylene, polypropylene, polystyrene, ABS, poly Measure the melt mass flow rate (MFR) or melt volume flow rate (MVR) of various plastic materials such as amide, fiber resin, acrylic ester, polyoxymethylene, fluoroplastics, polycarbonate, etc., and are widely used in plastic production , Plastic products, petrochemical industries and related colleges, research institutes and commodity inspection departments.
Features:
Ø High-precision Chinese and English color controllers, specially customized membrane buttons, have unparalleled advantages in control accuracy and service life
Ø The manual and automatic cutting are integrated control, accurate to 0.001s, and the cutting time and cutting times can be set arbitrarily.
Ø Built-in micro printer, can print test data
Ø The dual temperature control system adopts dual imported heating coils and dual imported PT100 platinum resistance sensors to improve test accuracy and temperature stability.
Ø Add displacement sensor to test MVR (volume method) with an accuracy of 0.01mm.
Ø The volume method test does not need to be cut, and the test result can be directly output
Ø The density value of the material at a specific temperature can be calculated by the ratio of the volume method and mass method
Ø It can be connected to the computer via USB, and the test conditions can be set on the computer through the software, and the data can be printed and stored (optional).
Method:
Mass method, volume method (MFR, MVR)
Display method:
4.3 Color touch screen display
Main technical parameters:
Ø Temperature range: 0℃-450℃
Ø Temperature fluctuation: ±0.2℃
Ø Temperature uniformity: ±1℃
Ø Temperature display resolution: 0.1℃
Ø Time display resolution: countdown display resolution 0.1s, volume method timing resolution 0.001s
Ø Die diameter: Φ2.095±0.005mm/Φ1.05mm±0.005mm (two standard)
Ø Length of discharge port: 8.000±0.025mm
Ø Diameter of charging cylinder: Φ9.550±0.025mm
Ø Weight accuracy: ±0.5%
Ø Displacement measurement accuracy: 0.01mm
Ø Volume method timing accuracy: 0.001S
Ø Displacement measurement encoder: Omron photoelectric rotary encoder
Ø Test range of quality method: 0.1-150g/10min
Ø Test range by volume method: 50-5000cm3/10min (up to 5000 cm3/10min can be measured by means of plugging mold)
Ø Output mode: micro automatic printout
Ø Cutting method: manual and automatic cutting in one
Ø Test load: 2.16kg weight for melt blown material
Ø Power supply voltage: AC220V±10% 50HZ
High-precision melt index instrument
Product model: MAY07
Introduction:
It is used to determine the MFR value of melt flow rate through a standard die every 10 minutes when various plastics and resins pass a certain temperature and load in a viscous flow state. It is suitable for polycarbonate, polyarylsulfone, and fluorine with higher melting temperature. Engineering plastics such as plastic and nylon. It is also suitable for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin, etc. The melting temperature is low The plastic testing is widely used in plastic production, plastic products, petrochemical industries and related universities, scientific research units and commodity inspection departments.
Standard:
GB/T3682-2000 "Determination of Thermoplastic Melt Flow Rate and Melt Volume Flow Rate"
ISO 1133: 1997 "Determination of Thermoplastic Melt Mass Flow Rate MFR and Melt Volume Flow Rate MVR"
ASTM D1238 "Standard Test Method for Measuring Thermoplastic Melt Flow Rate by Extrusion Plastometer"
Test method:
Mass method
Display method:
7 inch touch screen controller
Features:
Chinese and English color LCD display
Automatic cutting by hand
Dual temperature control system, more precise temperature control, higher heating efficiency
Double imported sensors, the upper and lower temperature gradients are more accurate, can be used independently, and improve the service life
The barrel is made of imported Hastelloy alloy nitriding, and the die is made of carbon tungsten steel. The material used is real
The insulation barrel is made of all sus304 stainless steel, which will not rust at high temperature for a long time
Automatically calculate the result and print it out
The main technical parameters:
Temperature range: 0℃-450℃
Temperature fluctuation: ±0.2℃
Temperature uniformity: ±1℃
Temperature display resolution: 0.1℃
Time display resolution: countdown display resolution 0.1s, volume method timing resolution 0.001s
Displacement accuracy: 0.001mm
Test result range: 50-5000cm³/10min
Barrel diameter: Φ2.095±0.005mm
Length of discharge port: 8.000±0.025mm
Diameter of charging cylinder: Φ9.550±0.025mm
Weight accuracy: ±0.5%
Output mode: micro automatic printout
Cutting method: manual and automatic cutting
Test load: 2.16kg weight for melt blown material (standard 2160g)
Power supply voltage: AC220V±10% 50HZ
Test process:
(1) Turn on the power of the MAY melt blown material melt index tester, adjust the level, set the temperature to 230 ℃, close the die shutter, and then put the die in the charging cylinder, click the temperature control button to let the instrument start heating Constant temperature 230℃
(2) After the constant temperature reaches 230℃, prepare 13~15ml of polypropylene PP raw materials, pour the raw materials into the charging cylinder and compact it with the material rod, and then insert the 325g load piston rod into the charging cylinder. The displacement rod is placed under the weight tray, but cannot touch the piston disc. Then press the 1835g load sleeve on the piston rod, click the timer, and the instrument starts to count down 300 seconds.
(3) After the 300-second countdown of the instrument is over, there will be an alarm sound, then click to run, and then push the die baffle aside, the raw material will be squeezed out under a load pressure of 2160g, when the piston rod touches the encoder, the instrument will automatically Start timing. When all the raw materials are extruded, the timing will automatically end, and the MFR value of PP raw materials will be displayed on the screen in g/10min.

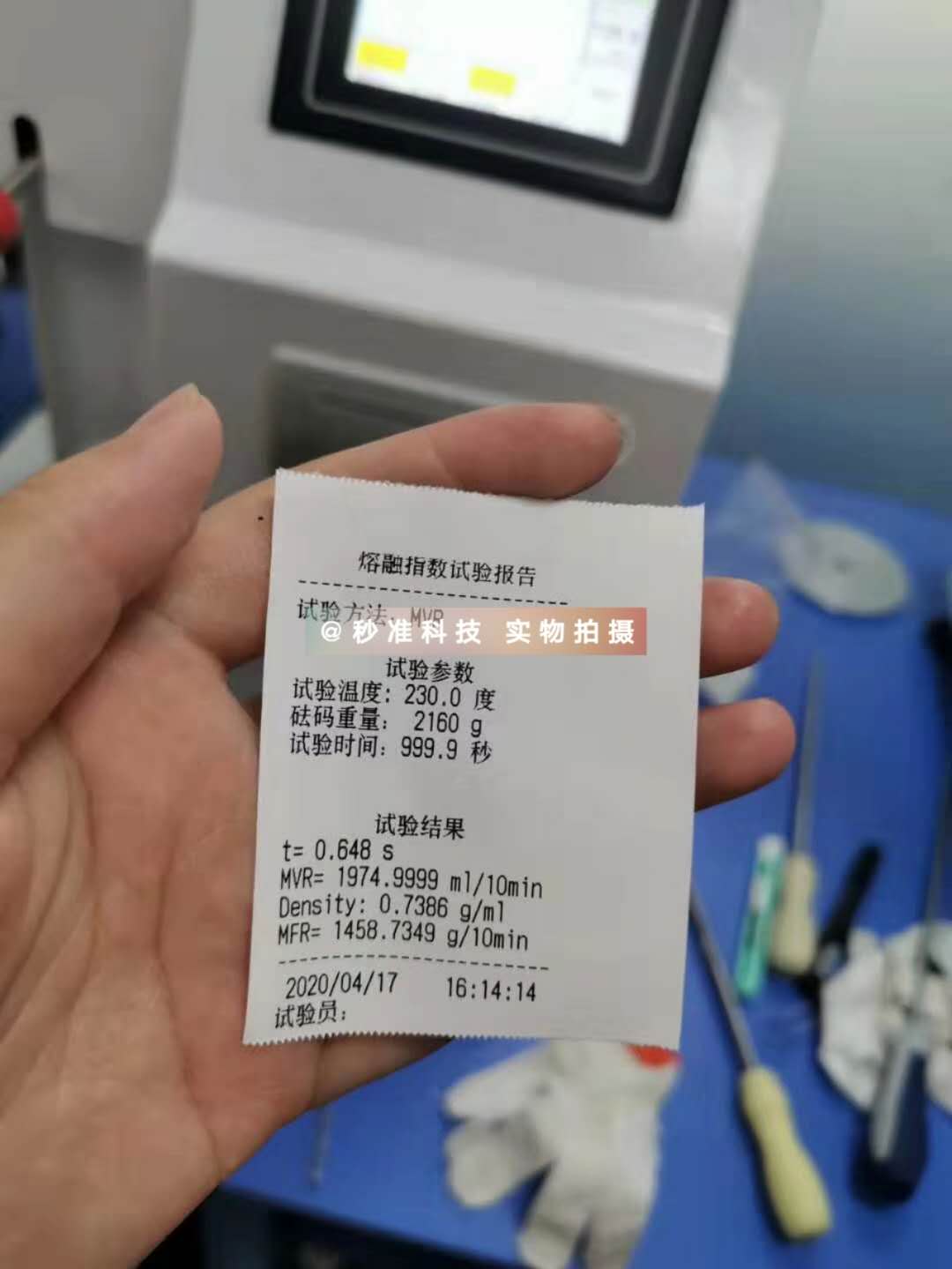

(4) Select the print result on the screen, and the test result will be printed out automatically.
Note: According to the GB/T3682-2018 standard specification, the MFR value in the above test is the MVR value and the density at 230℃.
