MZ-25CD Bostwick Consistency Meter/Flow Viscometer
Instrument introduction:
MAYZUM consistometer is a general instrument used to determine the texture structure of food. It is used to determine the viscosity of ketchup, jam and yoghurt.The consistency meter (flow viscometer) of MAYZUN is characterized by low cost, easy to operate and durability.The sample can be quickly tested for compliance with standard viscosity, consistency and fluidity no matter in the laboratory or production site. It is made of 2mm electrolytic treated steel plate and equipped with standard 100ml sample tank.Bostwick performed internal quality tests to ensure a harmony between measurement repeatability and instrumentation
Technical parameters:
1.Durable:Stainless steel construction;
2.Corrosion resistance:Suitable for laboratory and factory use;
3.Compact structure: 14 by 3.5 by 5.5 inches (inch), occupies little space;
4.Only 75ml samples are needed;
5.Spring-loaded door, instant door to prevent sample flow;
6.Good repeatability;
7.Two levelling screws and levelling instruments;
8.Precise positioning of flow Angle;
9.Precision: 12.5px precision scale is engraved to ensure accurate results.
Features:
MAYZUM consistometer (flow viscometer) features low cost, easy to operate and durable.Whether the samples meet the standard viscosity, consistency and fluidity can be quickly tested in the laboratory or the production site, and only a small piece of laboratory bench space can be used. It is the simplest and most accurate method for various fluid tests and widely used in chemistry, paint making, cosmetics and food industry.The CONSISTOMETER is made of stainless steel as a whole, with a precision scale (12.5px per grid) on the bottom.In order to find the consistency of the experiment, the base is provided with a bubble level instrument, which can adjust the level through the left and right two feet.This instrument is also called "Bostwick Consistometer".
Specification
| Standard specifications | the length of the test slot is 24cm, the minimum scale value is 0.5cm (48 scale lines) |
| Material | 2mm electrolytic treatment stainless steel plate |
| Sampling specifications | only need 75ml sample or up to 100ml sample |
| Horizontal configuration | 2 level adjustment knobs and liquid bubble level meter |
| Spring loaded door | It can prevent the sample from flowing prematurely, and can be opened instantly |
| Overall external dimensions | L35.5×W8.8×H10.4 cm |
| Test slot width | 84mm |
| Adjustable height | 110-139 mm |
| Standard | R-81294D and ASTM F1080-93 that meet the specifications of the rolling mill |

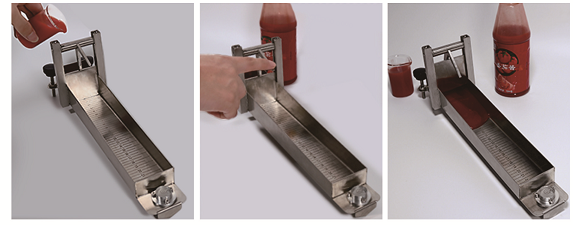

Usage:
Step 1: pour the sample to be tested (usually 75ml) into the sample tank behind the spring door;
Step 2: press the lock on the spring door to make the spring door snap, and start the time with a stopwatch;
Step 3: the progress of fluid flow in the instrument can be accurately measured by a precise scale on the floor.Physical characteristics (viscosity, fluidity, etc.) of the sample can be calculated by comparing the flow rate within a specific time period (generally 30 seconds).
