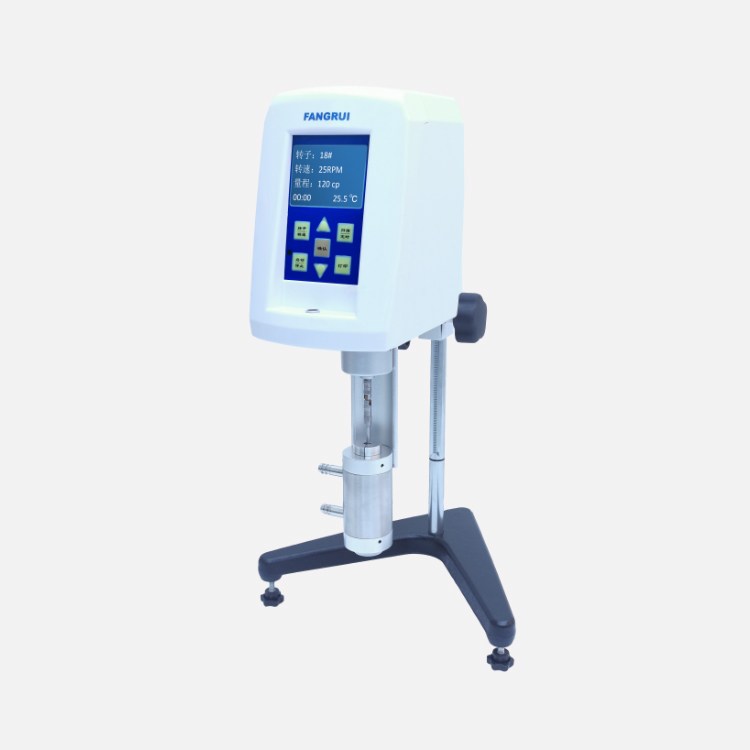

LV-MAY-SSR Micro Sample Digital Rotational Viscometer
(Special for small sample measurement, only 8ml sample is needed to measure viscosity)
Introduction:
The MAY-SSR series digital rotational viscometer adopts a coaxial cylinder structure and uses a small sample adapter. The amount of sample required for each measurement is very small, only 7ml-13ml (No. 0 rotor is 21ml), and optional loop The thermostatic water jacket cooperates with the thermostatic bath to control the temperature of the tested sample. The operation is very convenient and the measured value is accurate. It is very suitable for measuring precious and rare samples.
Main feature:
1. The level bubble is front-facing, and you can adjust the level while sitting, which is very convenient.
2. With timing measurement function
3. Coaxial cylinder structure
4. The measurement accuracy of the data is two decimal places
5. Convenient and reliable operation
6. Use a small number of sample adapters, the amount of sample required for testing is very small
7. The viscometer is equipped with two RS232 interfaces, which can be directly connected to a micro thermal printer and a computer
Detailed technical parameters:
1. LV-MAY-SSR series rotary viscometer:
Model | LV-MAY-SSR Series |
Display method | Backlit LCD, digital display |
Rotation speed(r/min) | 0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100 total 18 types |
Rotor | 18#，25#，31#，34# (4 choose 1) |
Measuring range | 3-1,600,000(mPa﹒s) |
| Sample volume | No. 18 otor: sample volume 7ml No. 25 rotor: sample volume 9ml No. 31 rotor: sample volume 10.5ml No. 34 rotor: sample volume 11ml |
Measurement error | ±2% (Newtonian liquid) |
Repeat error | ±1% (Newtonian liquid) |
Output Interface | There are two RS232 interfaces, which can be connected to printers and computers. |
Temperature probe interface | Standard |
Dimensions(mm) | 300 × 300 × 450 |
2. RV-MAY-SSR series / HA-MAY-SSR series / HB-MAY-SSR series Rotational viscometer:
Model | RV-MAY-SSR Series | HA-MAY-SSR Series | HB-MAY-SSR Series |
Display method | Backlit LCD, digital display | ||
Rotation speed(r/min) | 0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 total 18 types | ||
Rotor | 21#、27#、28#、29# Stantard | ||
Measuring range | 500,000-2 million No. 21 rotor: 500,000 to 100,000 No. 27 rotor: 2.5-50 million No. 28 rotor: 5 to 1 million No. 29 rotor: 10 to 2 million | 100-4 million No. 21 rotor: 100-20 million No. 27 rotor: 500 to 1 million No. 28 rotor: 1000 to 2 million No. 29 rotor: 2000-4 million | 400 – 16 million No. 21 rotor: 400-8 million No. 27 rotor: 2000-4 million No. 28 rotor: 4000-8 million No. 29 rotor: 8000-1600 million |
Sample volume | No. 21 rotor: sample volume 7.8ml No. 27 rotor: sample volume 11.3ml No. 28rotor: sample volume 12.6ml No. 29 rotor: sample volume 11.5ml | ||
Measurement error | ±2% (Newtonian liquid) | ||
Repeat error | ±1% (Newtonian liquid) | ||
Output Interface | There are two RS232 interfaces, which can be connected to printers and computers. | ||
Temperature probe interface | Standard | ||
Dimensions(mm) | 300 × 300 × 450 | ||
Optional accessories: DC0506W special low temperature thermostat for viscometer |  |
It adopts high-performance single-chip microcomputer control, self-tuning PID adjustment, imported Japanese platinum resistance, Embraco refrigeration compressor, fast cooling, accurate temperature control. The large-screen backlit LCD screen has clear and clear parameters, and has a constant temperature and liquid level protection device for broken couple protection, which can effectively prevent the phenomenon of instrument out-of-control and empty heating of the heating tube. The instrument is stable and reliable, and easy to operate. In the full range of temperature control, the linearity is very good, the DCW(N) series with 0.1 display accuracy, the temperature control accuracy error is less than 0.2℃, and the temperature fluctuation is less than ±0.05; Temperature control range: -5 to 100℃ |
Dual loop function can be freely selected for testing inside and outside the tank Utilize the external circulation function of the direct temperature tank, connect the hose and the circulating water jacket of the viscometer to perform accurate air temperature of the foreign product under test. The above models of viscometers can also be equipped with temperature control device and heating furnace combination Chen high temperature Bumin viscometer, used to measure high-temperature melted samples, such as paraffin, polyethylene wax, asphalt, hot melt, plastic and other samples. |  |
