MAY-2001-Flux Intelligent Flux Density Concentration Online Ratio Monitor
Special reminder
Our company develops and produces online alcohol tester, online density meter, online concentration meter, online PH meter, online refractometer, online Baume meter, online sugar meter etc.. support non-standard customization, and provide automation according to the customer's on-site environment Solution, you are welcome to inquire.
Introduction
The intelligent flux specific gravity concentration online proportioning monitor MAY-2001-Flux can be used to detect the specific gravity concentration of flux and pine perfume online, and when the specific gravity concentration of the flux exceeds the upper limit, it will automatically add diluent and flux. The ratio is set to the set value, so that the specific gravity concentration of the working flux is always within the upper and lower limits of the standard value, which has a very important meaning for improving the welding quality of components. As an auxiliary measuring device for automatic winding machine and wave soldering equipment, this detector has reasonable size design and flexible installation. It can be conveniently built into the cabinet of the original equipment. The user does not need to make major changes to quickly become the original equipment. A function expansion module. If necessary, the intelligent flux specific gravity concentration online proportioning monitor MAY-2001-Flux can also communicate with the PLC of the original equipment, and the detection data can be uploaded to the PLC in real time, and then the PLC can complete the relevant automatic control functions .
Principle:

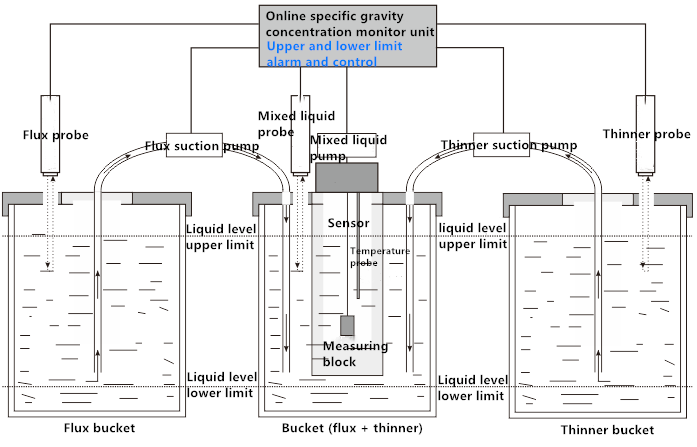

The intelligent flux specific gravity concentration online ratio monitor MAY-2001-Flux generates high-frequency vibration through the built-in motor when it is working. The vibration frequency generated in different concentrations of liquid media is different. The vibration frequency is detected by a piezoelectric crystal Through the phase shifting and amplifying circuit, it is converted into a digital signal of specific gravity concentration by the microprocessor.
Technical Parameters
Measuring range | Specific gravity concentration: 0-2.0g/cm³ |
Temperature: 0.0-100.0℃ | |
Liquid level: 0.0-1000mm | |
Accuracy | Specific gravity concentration: 0.0001g/cm³ |
Temperature: 0.1℃ | |
Liquid level: 0.1mm | |
Reading frequency | 2 times/s |
Medium temperature | 0.0 - 100.0℃ |
Sensor explosion-proof grade | Ex d IIC T6Gb |
Proportioning liquid tank volume | 4L（L170*W115*H195 mm） |
Dimension | L270*W180*H265 mm |
Degree of protection | IP67 for the liquid measuring part of the sensor |
Sensor material | Hastelloy (anti-corrosion, long life) |
Material of measuring tank | Transparent PVC (304 stainless steel material is optional) |
Output signal | The instrument comes with sound and light alarm for abnormal flux concentration, and can output upper and lower limit switch control signals at the same time |
Standard configuration | 1. Display Controller* 1 2. Vibration sensor * 1 3. Liquid level sensor * 1 4. Flux suction pump * 1 5. Thinner suction pump * 1 |
Power supply | DC 24V，2A |

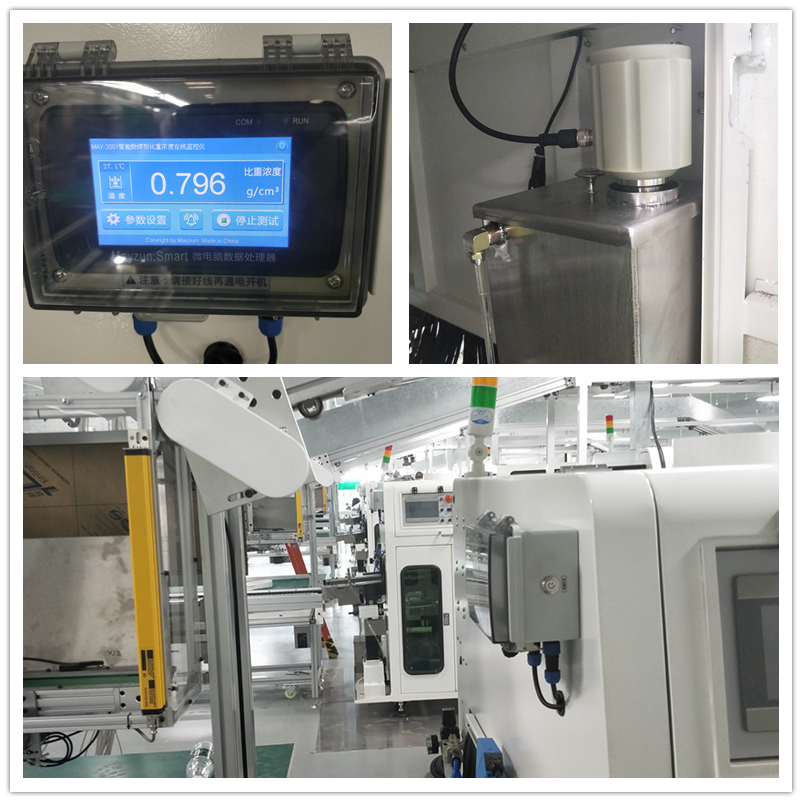

Detailed images
