Universal liquid density concentration tester
Model: MZ-G200, MZ-G300, MZ-G150
Remarks: MZ-G series is sampling measurement. If you need to monitor the specific gravity concentration of liquid online, please contact the supplier for the latest plan.
Standard specifications:
According to GB/T13531, T5526, T5009, ASTM, JIS, ISO specifications. Apply Archimedes' principle of buoyancy method to quickly read the relative density and concentration of liquids.
Application:
fluid liquid, viscous liquid, volatile liquid, corrosive liquid, high temperature liquid, suspended liquid, emulsified liquid... and other liquids in various states, such as alcohol, flux, flavor, copper sulfate, sodium chloride , Glycerin, electrolyte, diesel, refrigerant, hydrofluoric acid, dichloromethane, ether, sulfuric acid... and other similar liquids can be measured.

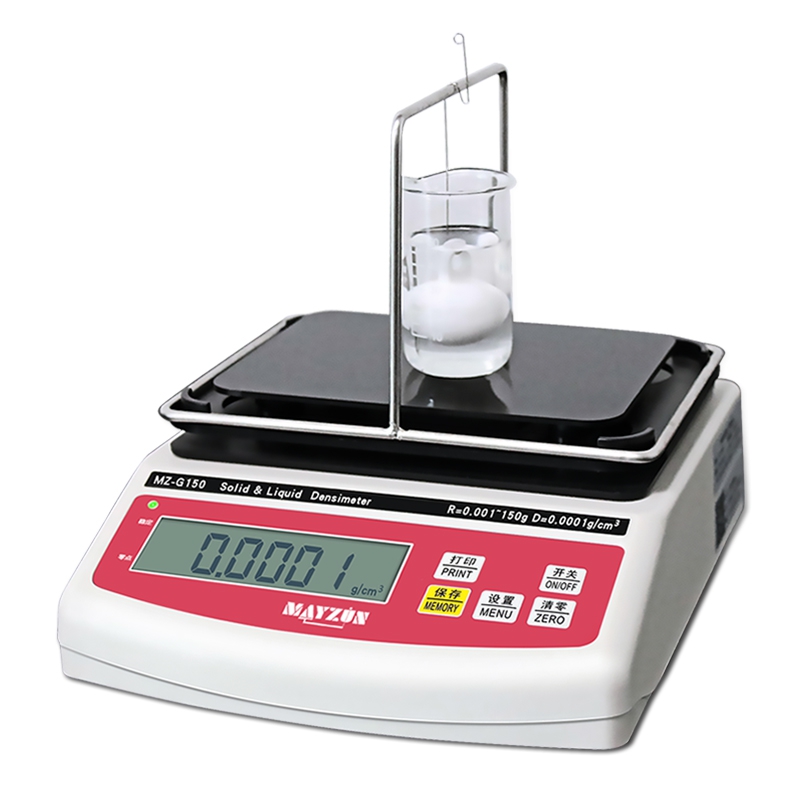

MZ-G150 (equipped with wind and dust cover Accuracy:0.0001g/cm³ | MZ-G300 Accuracy: 0.001g/cm³ |
 |  |

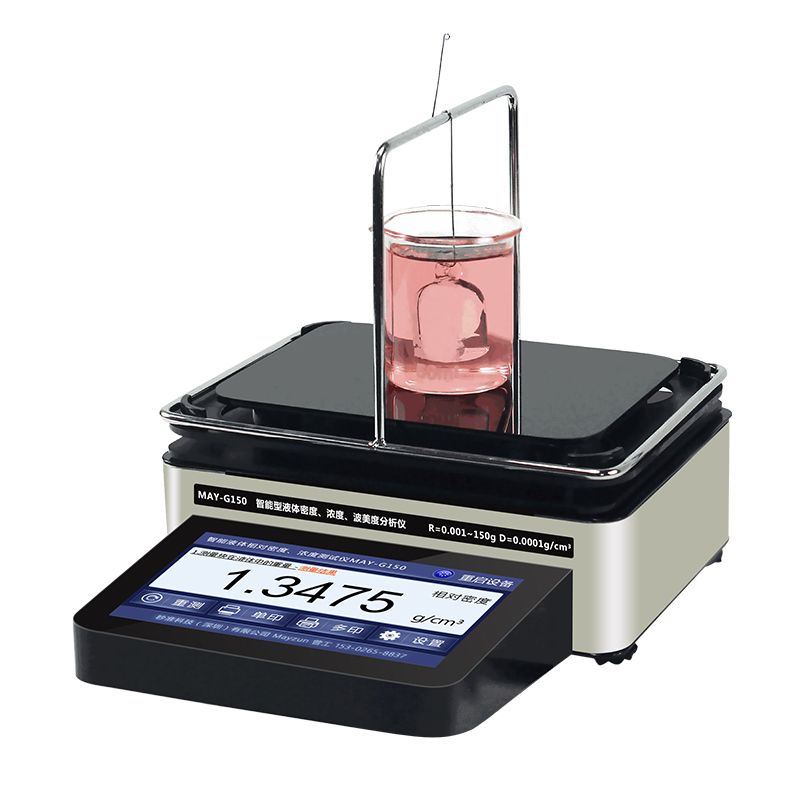

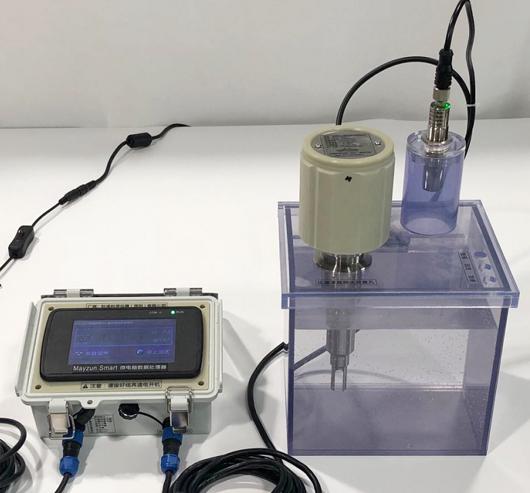

MAY-G150 Intelligent Liquid Density/Concentration/Baumé Analyzer | MAY-2001 On-line Lliquid Specific Gravity Concentration Tester |
 |  |
Introduction:
It adopts Japanese NMB sensor, stable reading, automatic overload protection, sturdy and durable, and three-year warranty.
The silent mechanical button imported from Japan can respond to the reading after a touch of 0.1 second, which is sensitive and fast, and has a lifetime warranty.
Any fluid liquid can be measured (true solution, dispersion, suspension, emulsion, viscous liquid, slurry, etc., all fluid liquids, such as: flux, pine perfume, ethanol, ethylene glycol, methanol, sulfuric acid , Copper sulfate, sodium hydroxide, potassium hydroxide, sodium chloride, electrolyte, vegetable oil, grease, resin, flour milk, soy milk, milk, etc.)... and other similar products can be quickly measured.
It adopts Teflon standard block with corrosion resistance, drop resistance and acid and alkali resistance, and it is free to replace for life.
Function description:
1. Digital display direct reading, no need for manual calculation, just take 25-50ml sample, one key direct reading liquid: density, concentration%
2. Fast direct-reading type, reading within 0.1 seconds, automatic zero tracking, full tare removal;
3. Optional charging function, can be used even if power is off, a single battery life is about 48 hours;
4. It has the function of setting the upper and lower limits of specific gravity, and automatically alarms if the data is unqualified;
5. With the function of actual water temperature compensation, adapt to the change of temperature difference between north and south/morning and evening;
6. It has a compensation function for errors caused by air buoyancy;
7. It can work with a constant temperature bath to realize constant temperature density measurement;
8. With RS-232C communication interface, it is convenient to connect PC and printer, optional MZ-P1 printer to print measurement data
9. There is no tedious debugging and operation of Webster's balance and pycnometer, one-key direct reading, simple operation.
Specification parameter table:
Brand | MAYZUM（Warranty for 3 years） | ||
Model | MAY-G200 | MAY-G300 | MAY-G150 |
Max load | 200g | 300g | 150g |
Density Precision | 0.003 g/cm3 | 0.001 g/cm3 | 0.0001 g/cm3 |
Repeatability precision | ±0.003g/cm3 | ±0.001g/cm3 | ±0.0001g/cm3 |
Concentration precision | 0.1% | ||
Density Range | 0.001~99.999g/cm³、0.1%~100% | ||
Testing Range | Any fluid liquid can be measured (true solutions, dispersions, suspensions, emulsions, viscous liquids, slurries and all other fluid liquids, such as flux, pine perfume, ethanol, ethylene glycol, methanol, sulfuric acid, etc. , Copper sulfate, sodium hydroxide, potassium hydroxide, sodium chloride, alcohol, electrolyte, vegetable oil, grease, resin, flour milk, soy milk, milk, etc.) | ||
Principle | Archimedes principle of drainage | ||
Testing Time | About 5 seconds | ||
Testing Procedure | 1. Place the beaker containing about 50cc sample in the middle of the tester, place the standard measuring weight in the measuring cup, hang the hook on the bracket, and press the reset button to remove the weight. 2. Hook up the standard weight with a hook and hang it on the bracket so that it does not touch the wall and bottom of the beaker. Press the MEMORY key, the liquid density tester immediately displays the density of the sample. Press the MENU key to switch the concentration value. | ||
Results Displayed | Liquid density, specific gravity, concentration %,Alcohol, brix, baume | ||
Parameter Setting | Water temperature setting, medium liquid density setting | ||
Calibration | One-key automatic Calibration | ||
Output Method | RS-232C standard communication interface, convenient for test data output and printing | ||
Temperature and Humidity Range | Allowable ambient temperature: 0~45℃; Allowable relative humidity: within 80% | ||
Power Supply | AC~220V / 50HZ（Export power supply needs to be customized, please indicate before ordering） | ||
Operation Panel | Japanese Omron mechanical keys | ||
Standard accessories | ①Liquid dedicated rack ②Special anti-corrosion weight ③Hook ④50ml beaker ⑤Special support ⑥Host ⑦Adjustment weight ⑧Power supply | ||
Optional accessories | □Special battery □Online printer □Teflon standard block (optional for corrosive liquid measurement, there is already a set of standard configuration) □Stainless steel standard block (optional for high viscous liquid measurement) | ||
