Intelligent Online Liquid Alcohol Content Monitoring Tester MAY-2001-VOL
Special reminder:
Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment.
Principle introduction:
MAY-2001 tuning fork online density meter has been widely used in industrial field, it is not afraid of hanging, not afraid of the impact, high sensitivity. It using tuning fork "resonance" principle, piezoelectric element is electrically driven by vibration, only probe rod surrounded by material surrounded by the amplitude of vibration is sharply reduced, resulting in switching action.
MAY-2001-V0L Online Alcohol Degree Tester is an intelligent monitoring device for alcohol content %vol developed by Mayzum Instruments. This instrument generates high-frequency vibration through a built-in motor during work. The vibration frequency generated in the liquid medium of different degrees is different. The frequency of vibration is detected by a piezoelectric crystal. which is converted into a digital signal of specific gravity concentration by a phase shift and amplifying circuit, and he fast interpolation lookup table algorithm independently developed by our company, calculate alcohol degree (%vol) of liquor and industrial alcohol.
Operational principle
MAY-2001 tuning fork online density meter is designed according to the theory of resonance. The vibration components is similar to two teeth of the tuning fork, the fork body vibration because of a piezoelectric crystal was located in the root of tooth, vibration frequency is detected by a piezoelectric crystal , through shifting the phase and amplifying circuit, the fork body is stable in the natural resonant frequency.
When the liquid flows through the fork body, vibration changes, caused the change of resonant frequency, thus through electronic processing unit to calculate accurate density value.
Function description:

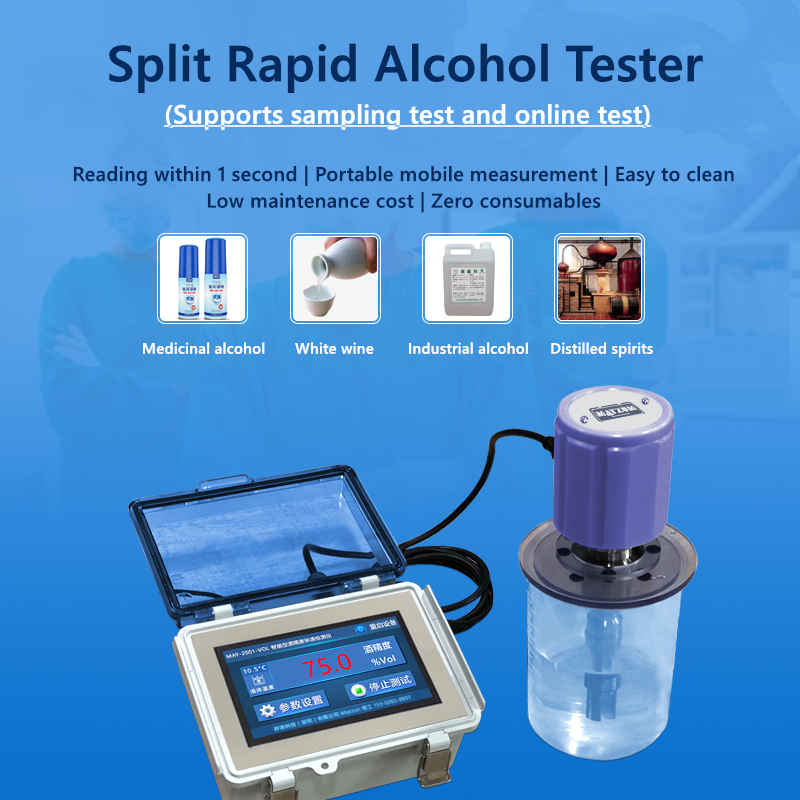

MAY-2001-V0L Online alcohol degree tester can help users quickly detect the alcohol content of liquor and industrial alcohol without any auxiliary reagents. The instrument has the advantages of flexible installation, fast measurement, accurate and convenient reading, etc. This instrument supports online pipelines installation, sampling tank installation, mobile sampling and various measurement methods. Whether you are on the production line or in the laboratory, this instrument can be easily competent.
Application:
Brewery winery and distillery; industrial alcohol; alcoholic no-clean disinfectant and hand sanitizer; alcohol spray; etc.
Main feature
1.4.3 inch full-color high-definition display screen, touch operation, parameter setting is simple and clear;
2. Adopt PPEK anti-corrosion and dust-proof protective shell, long-term use will not be disturbed by environmental humidity and impurities;
3. Alcohol degree measurement range 0.1~100.0%, accuracy 0.1%;
4. Real-time monitoring of temperature value, automatic temperature compensation, thermometer is not needed, to avoid measurement errors caused by temperature changes;
5. No need for tedious look-up table, automatic reading of liquid contact, automatic display of alcohol degree value and temperature value within 1 second;
6. Suitable for fluid or static liquid, support pipeline installation online monitoring/sampling handheld portable measurement free switching;
7. The factory has been calibrated according to the requirements of the national standard, and there is no need to calibrate for long-term use;
8. All parts in contact with liquid are Hastelloy (more advanced and more anti-corrosion than 316 stainless steel), anti-corrosion, acid and alkali resistant;
9.A variety of output signals are available. The default RS232 and RS485 Modbus RTU digital values. Can be equipped with switching output, 4~20mA and other outputs.
Technical characteristics
Intelligent Online Liquid Alcohol Content Monitoring Tester MAY-2001-VOL
| Brand | Mayzum | |
| Model | MAY-2001-VOL | |
| Measuring range | Alcohol degree:0.1~100.0%vol | |
| Specific gravity concentration:0-3.0g/cm³ | ||
| Temperature:0.1 ~ 100.0ºC | ||
| Measurement accuracy | Alcohol degree:0.1%vol | |
| Specific gravity concentration:0.0001g/cm³ | ||
| Temperature:0.1ºC | ||
| Measurement error | Alcohol degree:±1%vol | |
| Specific gravity concentration:±0.005g/cm³ | ||
| Temperature:±2ºC(heat conduction) | ||
| Reading frequency | 2 times/S (0.5 seconds reading) | |
| Protection level | sensor liquid measurement part IP67 | |
| Sensor explosion-proof level | Ex d IIC T6Gb | |
| Probe material | Hastelloy (more corrosion resistant than 316L stainless steel) | |
| Medium temperature | 0.0 ~ 100.0ºC | |
| Ambient temperature | -40~85ºC | |
| Allow relative humidity | within 80% | |
| Output signal | Default RS232, RS485 Modbus RTU digital value, optional switch value, 4~20mA output | |
| Power supply | DC 24V,2A | |
| Standard configurations | display controller, measuring probe | |
| Other functions | Can be customized according to user needs | |

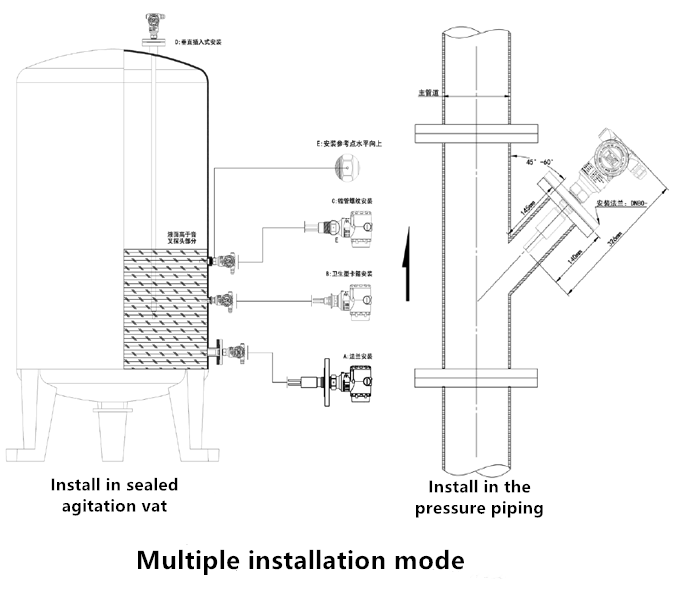

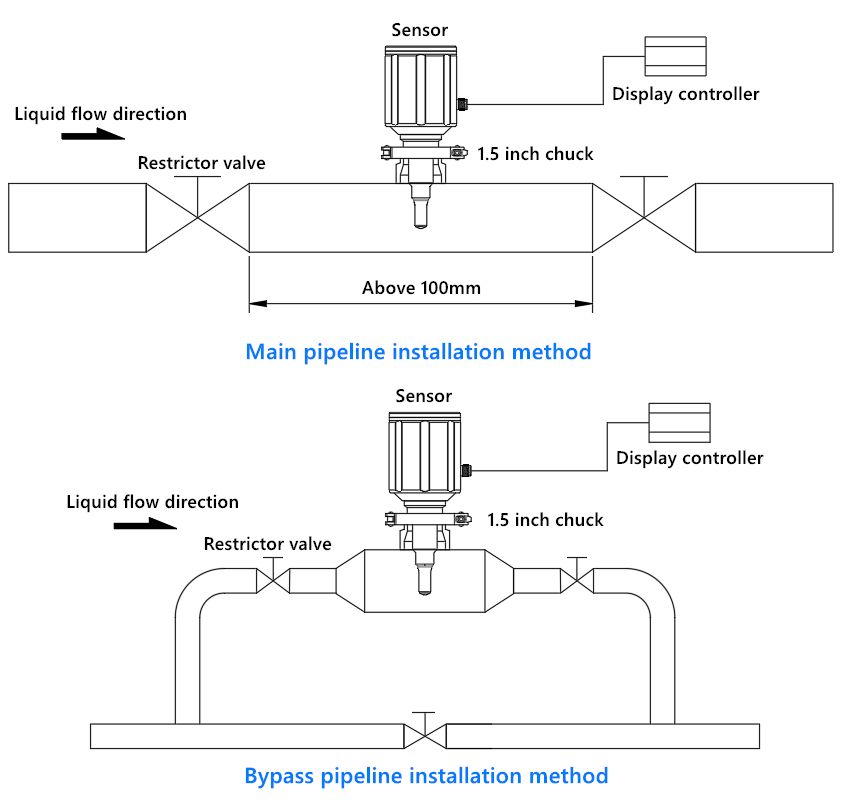

Online measurement installation and size
4.3 inch display mounting dimensions drawing
Software Interface
