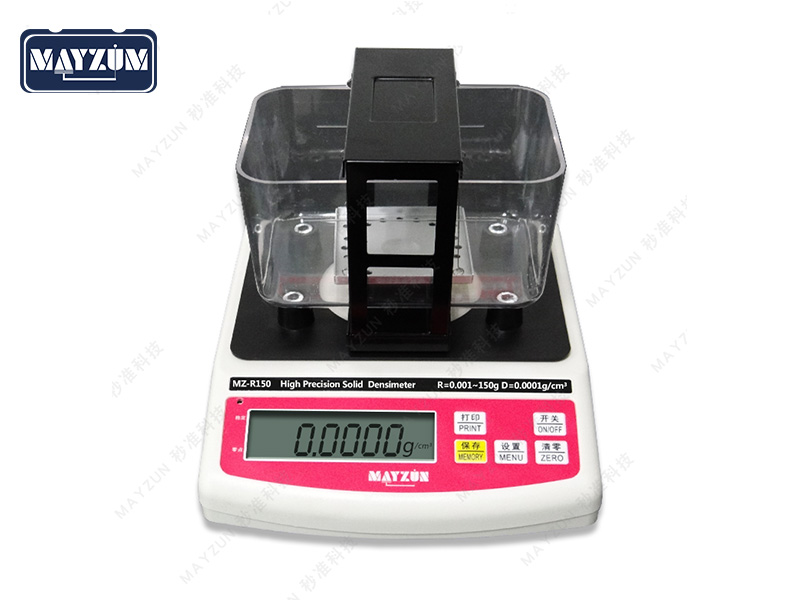

MZ-R600 Refractory Material Bulk density And Powder true density tester
Model: MZ-R300, MZ-R600, MZ-R150
MZ-R300/R600 Accuracy:0.001g/cm³
| MZ-R150（Equipped with windproof and dustproof cover） Accuracy:0.0001g/cm³
|
Patented product: Intelligent MAY-124/224/324SD Accuracy:0.0001g/cm³
| MZ-R3000 (Size can be customized on demand ) Accuracy: 0.001g/cm³
|
Standard Specification:
According to ASTM C-20, C-437, C357, C134, C-135, C-493, GB/T2997, 2998, 2999 specifications. Using the principle of Archimedes buoyancy method, the operation of vacuum, boiling saturation method, and immersion method is used to quickly read the measured value.
Application:
Graphite carbon, refractory materials, conductive materials, corrosion-resistant materials, new materials research and experiment
Features:
1. Digital display direct reading, without manual calculation, direct display of density and volume.
2. Porous refractory brick materials, dense non-absorbent materials, powders and similar products can all be measured quickly.
3. The German original HBM sensor is used for accurate measurement, easy operation, stable and durable.
4. It has the function of actual water temperature compensation, which can adapt to changes in the test environment.
5. The density of the medium can be set, water is used as the medium, and other liquid mediums can also be used.
6. Adopting one-piece high-capacity measuring platform, corrosion-resistant and drop-proof, free replacement for life.
7. Equipped with a special wind-proof and dust-proof cover, which is easy to combine, sturdy and durable.
8. With RS-232C communication interface, it is convenient to connect PC and printer. MZ-P1 printer can be selected to print measurement data
MZ-R150 function description:
1. Directly read volume density, wet density, dry density, apparent porosity, water absorption, open pore volume, sealed pore volume, and total porosity.
2. Directly read the specific gravity and volume of injection molded non-absorbent graphite and carbon brush
3. Purchase a special pycnometer to directly read the true density of graphite and carbon brush powders.
MZ-R300/R600 function description:
1. Directly read volume density, dry density, wet density, apparent porosity, and water absorption.
2. Purchase a special pycnometer to directly read the true density of graphite and carbon brush powder.
Technical parameters:
Note: A large range of large-scale density meters can be customized according to customer needs, and the maximum can be customized 6-30kg)
Brand | MAYZUM（Warranty for 3 years） | |||||
Model | MZ-R300 | MZ-R600 | MZ-R1200 | MZ-R150 | ||
Weight accuracy & Max load | 0.005g / 300g | 0.01g / 600g | 0.01g / 150g | 0.0001g / 150g | ||
Density Precision | 0.001 g/cm3 | 0.0001 g/cm3 | ||||
Density Range | 0.001~99.999g/cm3 | |||||
Water absorption porosity and oil content accuracy | 0.01% | |||||
Principle | Archimedes principle of drainage | |||||
Testing Time | About 5 seconds | |||||
Testing Procedure | 1. Put the sample on the measuring table and press MEMORY to save 2. Put the sample into the water measuring table and press the MEMORY key to save it. The instrument directly displays the density, volume. Porous material test procedure according to national standard, please refer to random instruction | |||||
Results Displayed | Bulk density, wet density, dry density, apparent porosity, water absorption, open pore volume, sealed pore volume, total porosity The true density of the powder | |||||
Parameter Setting | Water temperature setting, medium liquid density setting | |||||
Calibration | One-key automatic Calibration | |||||
Output Method | RS-232C standard communication interface, convenient for test data output and printing | |||||
Temperature and Humidity Range | Allowable ambient temperature: 0~45℃; Allowable relative humidity: within 80% | |||||
Power Supply | AC~220V / 50HZ（Export power supply needs to be customized, please indicate before ordering） | |||||
Standard accessories | ①Host computer ②Sink ③Measuring table ④Tweezers ⑤Bubble dropper ⑥Weight ⑦Power transformer ⑧Particle measuring accessories ⑨Floating material measuring accessories | |||||
Optional accessories | MZ-P1 printer Mayzum-Smart multi-sample measurement system | |||||
Other Parameters | Outer packing size: 395*195*330mm Tester size: 210*195*185mm Net weight : 3.5kg Gross weight: 4.5kg HS code : 90160090 | |||||
