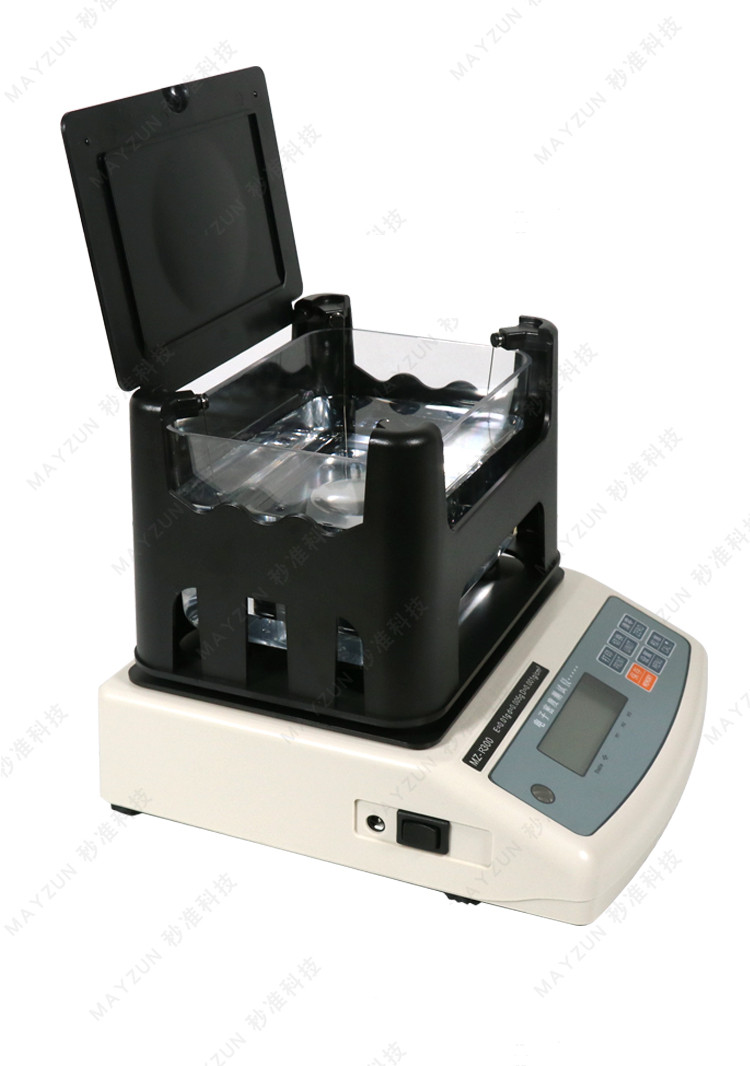

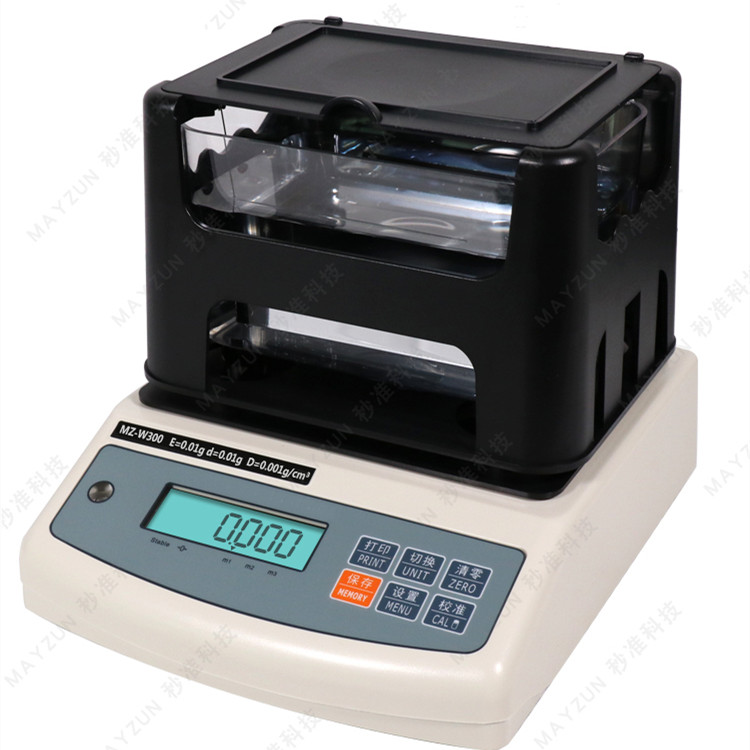

MZ-W600 Wood Basic Density And Air-dry Density Tester

Model: MZ-W300, MZ-W600, MZ-W1200, MZ-W150

Principle:

According to GB/T1933, ASTM, JIS, ISO standards. It can be applied to the measurement of boiling saturation method, vacuum saturation method and sealing wax method, adopting Archimedes buoyancy method principle, direct reading value.

Application:

imber, civil engineering and decoration industry, forest industry, new material research laboratory, etc.

Features

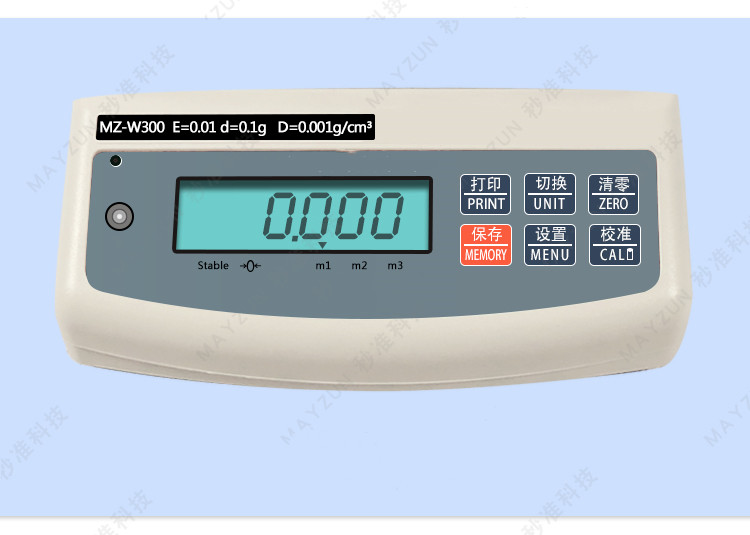

1. Digital display direct reading, without manual calculation, direct display of parameters such as density and volume.

2. Porous water-absorbent ore, marble, ore powder and similar products can all be measured quickly.

3. The German original HBM sensor is used for accurate measurement, easy operation, stable and durable.

4. It has the function of actual water temperature compensation, which can adapt to changes in the test environment.

5. The density of the medium can be set, water is used as the medium, and other liquid mediums can also be used.

6. Adopting one-piece high-capacity measuring platform, corrosion-resistant and drop-proof, free replacement for life.

7. Equipped with a special wind-proof and dust-proof cover, which is easy to combine, sturdy and durable.

8. With RS-232C communication interface, it is convenient to connect PC and printer. MZ-P1 printer can be selected to print measurement data

MZ-W150 function description:

A. The basic density uses boiling method or vacuum saturation method to directly read volume density, wet density, apparent density, apparent porosity, water absorption, open pore volume, sealed pore volume, and total porosity.

B. Wood air-dry density test uses the sealing wax method to directly read the bulk density

C. For wood products that do not absorb water, the density and volume of the product can be directly read

D. Adopt a large water tank design to reduce the error caused by the buoyancy of the hanging rail line.

E. Purchase a special pycnometer, which can read the density of wood cells

MZ-W300/W600 function description:

A. The basic density test can use boiling method and vacuum saturation method, which can directly read volume density, apparent density, wet density, apparent porosity, and water absorption.

B. Wood air-dry density test uses the sealing wax method to directly read the bulk density

C. For wood products that do not absorb water, the apparent density of the product can be directly read.

D. Adopting a large water tank design to reduce the error caused by the buoyancy of the hanging rail line

E. Purchase a special pycnometer, which can read the density of wood cells

Technical parameters:

Note: A large range of large-scale density meters can be customized according to customer needs, and the maximum can be customized 6-30kg)
