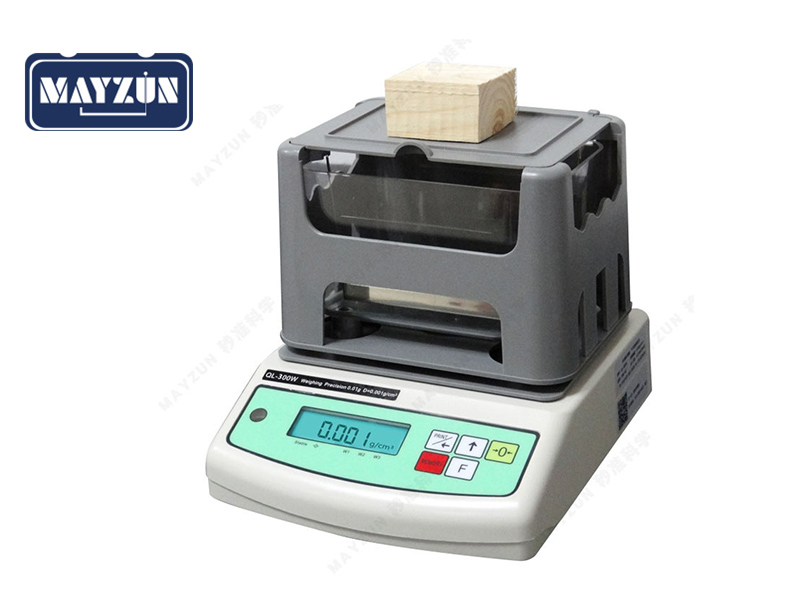

Universal plastic specific gravity, abrasion, foaming rate testerQL-300AW/QL-600AWMade in Taiwan ApplicationPlastic factories, wire and cable factories, pipe factories, packaging materials, insulation materials, pastes, new materials research laboratories, etc. |
Principle
Comply with GB/T 533, GBT/1463 2005, ISO 2781, ASTM D 297, DIN 53479, ASTM D792, ISO 1183, MS213-24, GB/T1033 and other standards, adopt Archimedes principle buoyancy method, accurate and straight Read the measured value.
Image | Functions and features |
| (1) Use the latest version of the conversion software, without any calculation, 2 steps of operation, 5 seconds to accurately and quickly measure such as: rubber plastic blocks, PVC/PP/PE plastic particles, polyurethane foam, silica gel/asphalt glue and other solids, Density and specific gravity of granular, floating and colloidal materials; (2) Using DIN and AKRON Aker abrasion test methods, it can be used to detect DIN abrasion, AKRON Akron abrasion volume and abrasion index of materials such as automobile tires, rubber, conveyor belts, and EVA shoe materials; (3) According to (JIS-K-6258) and (ISO1817) standards, it can be used to detect the mass change rate and volume expansion rate of oil seals of rubber materials such as vulcanized rubber, rubber seal rings, and oil rings; (4) For foam plastics such as polyurethane, polypropylene PP, polyethylene PE, EPS, etc., the foaming ratio and quality change rate can be measured; (5) It has the function of compensation setting of solution temperature and density, and distilled water or tap water can be used as the measuring medium; (6) The design of an integrated water tank and lightweight hanging railing line can greatly reduce the measurement error caused by air buoyancy; |
Specification:
Model | QL-300AW | QL-600AW |
Max load | 0.005-300g | 0.01-600g |
Density/Sp. gr accuracy | 0.001 g/cm3 | |
Density range | >1,<1 can be measured | |
Types of test products | Solid, granular, floating and paste | |
Testing time | About 5 seconds | |
Functions | Can test density, specific gravity, volume, DIN abrasion, AKRON Akron abrasion volume and abrasion index, rubber oil seal mass change rate and volume expansion rate, foaming ratio and weight change rate of foamed plastics | |
Setting | Temperature compensation setting, solution compensation setting | |
Interface | Standard RS-232 interface, connect printer and computer to output test data | |
QL-300AW/600AW accessories:
Temperature and humidity range | Allowable ambient temperature: 0~45℃; Allowable relative humidity: within 80% |
Power Supply | AC-220V / 50HZ |
Operation panel | Japan Omron silent mechanical button |
Standard accessories | ①Host computer ②Sink ③Measuring table, ④Tweezers, ⑤Bubble dropper, ⑥Weight, ⑦Power transformer, ⑧One set of accessories for measuring partcles, ⑨One set of accessories for measuring floating body set |
Optional accessories | MZ-P1 printer Mayzun-Smart multi-group sample measurement system |
Other parameters | Outer packing size: 395*195*330mm Body size: 210*195*185mm Net weight of the whole machine: 3.5kg Gross weight: 4.5kg HS code: 90160090 |
