Intelligent Split Type Alcohol Degree Tester MAY-2001-V0L
Online/sampling Two measurement methods can be switched freely
Two-in-one alcohol degree tester
Fast and accurate measurement
Application:
Brewery winery and distillery; industrial alcohol; alcoholic no-clean disinfectant and hand sanitizer; alcohol spray; etc.
Principle introduction:
MAY-2001-V0L Split type Alcohol Degree Tester is an intelligent monitoring device for alcohol content %vol developed by Mayzum Instruments. This instrument generates high-frequency vibration through a built-in motor during work. The vibration frequency generated in the liquid medium of different degrees is different. The frequency of vibration is detected by a piezoelectric crystal. which is converted into a digital signal of specific gravity concentration by a phase shift and amplifying circuit, and he fast interpolation lookup table algorithm independently developed by our company, calculate alcohol degree (%vol) of liquor and industrial alcohol.
Function description:
MAY-2001-V0L split type alcohol degree tester can help users quickly detect the alcohol content of liquor and industrial alcohol without any auxiliary reagents. The instrument has the advantages of flexible installation, fast measurement, accurate and convenient reading, etc. This instrument supports online pipelines installation, sampling tank installation, mobile sampling and various measurement methods. Whether you are on the production line or in the laboratory, this instrument can be easily competent.
Main feature:
1.4.3 inch full-color high-definition display screen, touch operation, parameter setting is simple and clear;
2. Adopt PPEK anti-corrosion and dust-proof protective shell, long-term use will not be disturbed by environmental humidity and impurities;
3. Alcohol degree measurement range 0.1~100.0%, accuracy 0.1%;
4. Real-time monitoring of temperature value, automatic temperature compensation, thermometer is not needed, to avoid measurement errors caused by temperature changes;
5. No need for tedious look-up table, automatic reading of liquid contact, automatic display of alcohol degree value and temperature value within 1 second;

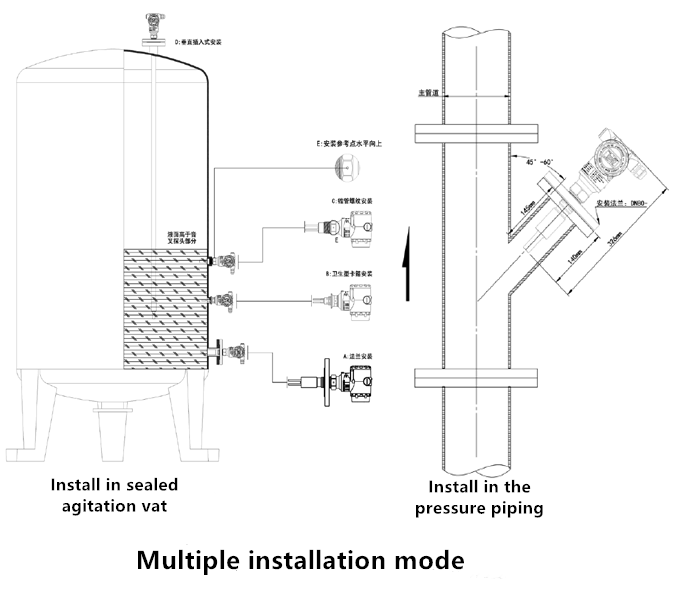

6. Suitable for fluid or static liquid, support pipeline installation online monitoring/sampling handheld portable measurement free switching;
7. The factory has been calibrated according to the requirements of the national standard, and there is no need to calibrate for long-term use;
8. All parts in contact with liquid are Hastelloy (more advanced and more anti-corrosion than 316 stainless steel), anti-corrosion, acid and alkali resistant;
9.A variety of output signals are available. The default RS232 and RS485 Modbus RTU digital values. Can be equipped with switching output, 4~20mA and other outputs.
Technical Parameters:
Brand | MAYZUM | |
Model | MAY-2001-VOL | |
Measuring range | Alcohol degree：0.1~100.0%vol | |
Specific gravity concentration：0-3.0g/cm³ | ||
Temperature:0.1 ~ 100.0℃ | ||
Measurement accuracy | Alcohol degree：0.1%vol | |
Specific gravity concentration：0.0001g/cm³ | ||
Temperature:0.1℃ | ||
Measurement error | Alcohol degree：±1%vol | |
Specific gravity concentration：±0.005g/cm³ | ||
Temperature:±2℃（heat conduction） | ||
Reading frequency | 2 times/S (0.5 seconds reading) | |
Protection level | sensor liquid measurement part IP67 | |
Sensor explosion-proof level | Ex d IIC T6Gb | |
Probe material | Hastelloy (more corrosion resistant than 316L stainless steel) | |
Medium temperature | 0.0 ~ 100.0℃ | |
Ambient temperature | -40~85℃ | |
Allow relative humidity | within 80% | |
Output signal | Default RS232, RS485 Modbus RTU digital value, optional switch value, 4~20mA output | |
Power supply | DC 24V，2A | |
Standard configurations | display controller, measuring probe | |
Other functions | Can be customized according to user ne | |

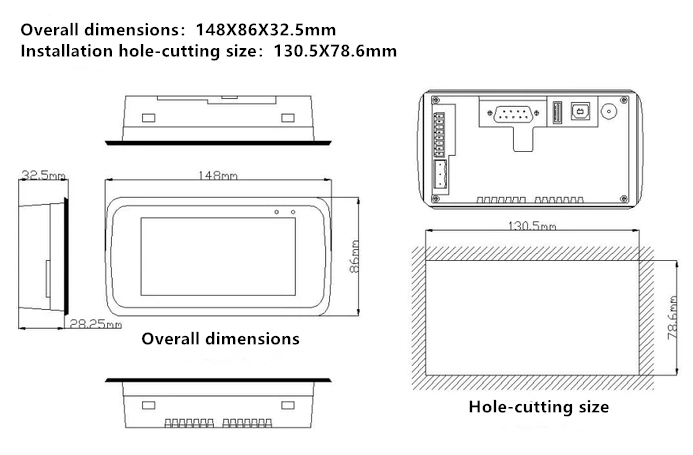

4.3 inch display mounting dimensions drawing
