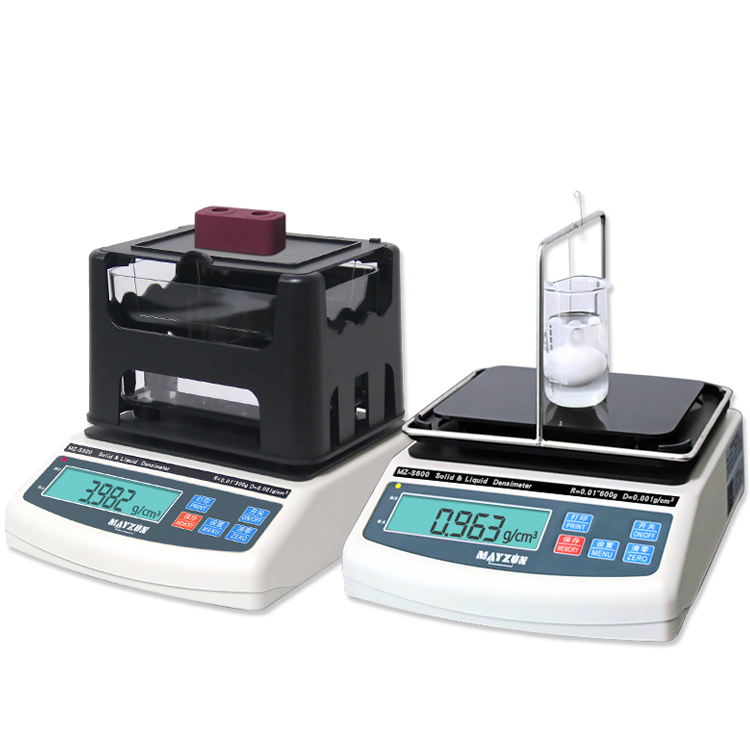

High Precision Multi-function Solid-liquid Density And Concentration Tester
Model: MZ-S300, MZ-S600, MZ-S150
Standard specifications
ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T 611, GB/T11540, GB/T12206 , GB/T5518... and other standard specifications.
Application
Rubber, plastic, wire and cable, tires, glass products, cemented carbide, chemical solutions, modern energy, petroleum fuels, fine chemicals, chemical reagents, chemical engineering research laboratories, new materials research laboratories. It is suitable for density measurement in the fields of quality management, formula preparation, cost control, and density research.
Solid Mode | Liquid Mode |
| |
Product description
1. It adopts Japanese NMB sensor, stable reading, automatic overload protection, sturdy and durable, and three-year warranty.
2. Japanese silent mechanical button can respond to the reading after a touch of 0.1 second, which is sensitive and fast, and has a lifetime warranty.
3. Rubber and plastic products, particles, films, floating bodies (such as pearl cotton EPE, etc.), metal products, dense ceramics, magnetic materials... and other similar products can all be quickly measured.
4. Adopt one-piece high-capacity measuring table (160*110*100mm), corrosion-resistant and drop-proof, free replacement for life.
Function description
1. Digital display direct reading, without manual calculation, direct reading of solids, particles, floating bodies: density, volume, alloy mixing ratio%; liquid mode only needs to take a sample of 25~50ml, one-key direct reading of liquid: density, concentration%
2. Fast direct-reading type, reading within 0.1 seconds, automatic zero tracking, and tare removal in the whole process.
3. Standard Teflon anti-corrosion weights, drop resistance and corrosion resistance.
4. It has the function of setting upper and lower limits of specific gravity, and automatically alarms when the data is unqualified.
5. It has the function of actual water temperature compensation, adapting to the change of temperature difference between north and south/morning and evening.
6. The density of the medium can be set, water is used as the medium, and other liquid mediums can also be used.
7. Optional charging function, can be used even if power is off, a single battery life is about 48 hours.
8. With RS-232C communication interface, it is convenient to connect PC and printer. MZ-P1 printer can be selected to print measurement data.
9. Optional Mayzum-Smart measurement system to achieve multiple sets of data measurement, print A4 reports, and store 100,000 sets of data.
Technical parameters
(Note: A large range of large-scale density meters can be customized according to customer needs, and the maximum can be customized 6-30kg)
Brand | MAYZUM ( Warranty period: three years) | |||
Model | MZ-S300 | MZ-S600 | MZ-S150 | Intelligent MAY-ENTRIS120 |
Max load | 0.005-300g | 0.01-600g | 0.001-150g | 0.0001-120g |
Measuring efficiency | Only one set of samples can be tested at a time | Only ten sets of samples can be tested at a time | ||
Density accuracy | 0.001 g/cm3 | 0.0001 g/cm3 | 0.0001 g/cm3 | |
Density range | 0.001-99.999g/cm3 | |||
Internal tank size | Dimensions: length 15.3 cm × width 10.7 cm × height 9.3 cm | |||
Measurement type | Solid mode: block solids, granular bodies, floating bodies of any shape (density>1,<1 can be tested) Liquid mode: any liquid liquid can be measured | |||
Measuring principle | Archimedes drainage method principle | |||
Reading response time | About 2 seconds | |||
Solid mode measurement procedure | 1. Place the sample on the measuring table and press the save button to remember; 2. Put the sample on the hanging basket in the water and press the save button to display the density and volume directly (If it is measuring alloy, press "Switch" key to display alloy%) | |||
Liquid mode measurement procedure | 1. Take a sample of about 25~50ml 2. Suspend the standard block in the liquid to be tested, and read the density (specific gravity) and concentration% directly with one key | |||
Displayed result | Solid density, volume, alloy content mixing ratio%; Liquid density, concentration% | |||
Correction method | One-key automatic correction | |||
Parameter setting | Water temperature setting, medium liquid density setting | |||
Temperature and humidity range | Allowable ambient temperature: 0~45℃; Allowable relative humidity: within 80% | |||
Power supply | AC~220V / 50HZ | |||
Output method | RS-232C standard communication interface, convenient for test data output and printing | |||
Standard accessories | ①Host computer ②Sink ③Measuring table ④Tweezers ⑤Bubble dropper ⑥Weight ⑦Power transformer ⑧Particle measuring accessories ⑨Floating material measuring accessories ⑩ Liquid measuring accessories | |||
Optional accessories | MZ-P1 printer MAYZUM-Smart multi-sample measurement system | |||
Other parameters | Outer packing size: 395*195*330mm; Body size: 210*195*185mm Net weight of the whole machine: 3.5kg; Gross weight: 4.5kg HS code: 90160090) | |||
