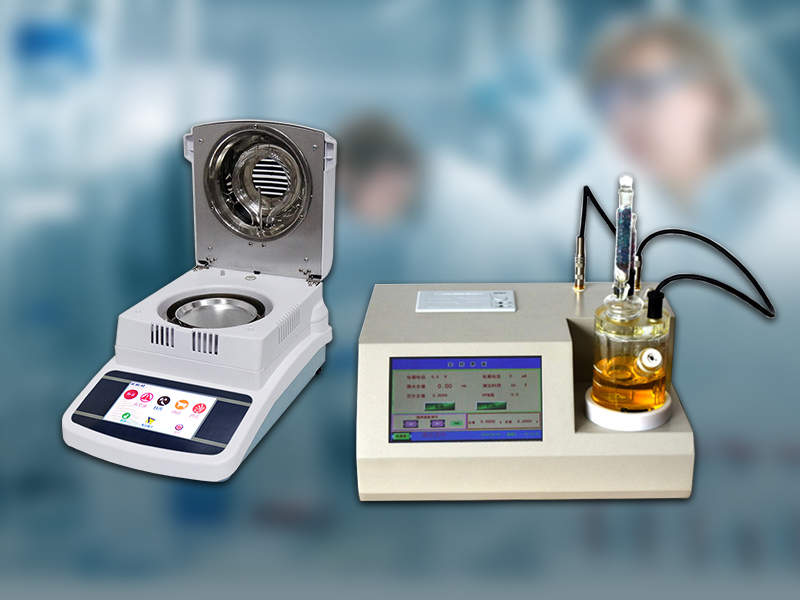

Economical Touch Screen Halogen Moisture Analyzer
Model: MAY-DS105 MAY-DS101
Application:
Medicine, plastics, chemicals, food (surimi, dehydrated vegetables, meat and aquatic products processing, noodles, flour, biscuits, moon cakes, etc.), grain, feed, seeds, rapeseed, tobacco, tea, textiles, agriculture, forestry, paper, rubber The requirements for moisture determination in laboratories and production processes in industries such as, textile, powder, etc., and meet the determination of moisture content of solids, particles, powders, colloids and liquids at the same time.
Principle:
Designed by the principle of pyrolysis weight, it is a new type of rapid moisture detection instrument. While the moisture analyzer measures the weight of the sample, the infrared heating unit and the moisture evaporation channel quickly dry the sample. During the drying process, the moisture analyzer continuously measures and instantly displays the missing moisture content% of the sample. After the drying process is completed, the final moisture content is determined The value is locked. Compared with the international oven heating method, infrared heating can reach the maximum heating power in the shortest time, and the sample is quickly dried at high temperature. The test results are in good agreement with the national standard oven method, and the test efficiency is far higher. In the oven method.
Function description:
1. With functions of automatic weighing, automatic calibration, temperature setting, and time setting
2. Large touch screen, automatic operation, simple and convenient
3. Heating method: halogen lamp heating
4. Imported light source, fast heating speed
5. Small size, light weight, and suitable for moisture determination of low-density products
6. Fully automatic test, wide range of uses; the end point adopts automatic judgment mode to lock the final moisture value.
7. Simple operation, accurate measurement, no need to set test mode and test time, no need to worry about the poor repeatability of the weighing system due to time drift and temperature drift.
8. LED LCD screen display, can store 1000 sets of measurement results at the same time, batch printing after the measurement is completed, saving time and effort
9. An optional printer can quickly print the measured values.
Operation steps:
1. Place the empty sample pan on the holder and press the [Tare key] to remove the weight of the sample pan.
2. Spread the sample evenly on the sample pan, cover the heating chamber , and press the [Start] key to start the test after the displayed data is stable. (There is a representative in the upper left corner of the screen that it is heating).
3. After the test, the screen directly displays the moisture content of the sample, press the [Mode] key to switch to other test result data, and press the start key again to return to the next sample test.
Specification parameter table
MZ-DS series halogen moisture analyzer | |||
Model | MZ-DS54 | MZ-DS101 | MZ-DS105 |
Maximum weighing value | 50g | 100g | 100g |
Display division value | 0.0001g | 0.001g | 0.005g |
Readability (Sample> 10g) | 0.001% | 0.01% | 0.05% |
Repeatability accuracy | ±0.01% | ±0.05% | ±0.1% |
Heating source | Ring halogen lamp | ||
Display | Eye protection LCD screen | ||
Temperature setting | Room temperature-160℃ | ||
Weight calibration | Automatic external calibration | ||
Results show | Moisture content, solid content, moisture regain, weight after drying, real-time temperature, moisture content curve | ||
Measurement mode | Automatic, timing, manual | ||
Communication interface | Thermal printing (directly print out the moisture value/solid content) Standard RS232 communication interface, which can be connected to printer, PC and other peripheral equipment | ||
Weighing pan size | φ110 (mm) | ||
Dimensions | （D*W*H）330*205*165(mm) | ||
Packing size | （D*W*H）410*315*335 (mm) | ||
Net weight | 3.2kg | ||
Gross weight | 4.6kg | ||
