High Precision Density / Specific Gravity / Porosity Tester For Powder Metallurgy MIM Product
Model: MZ-P300 MZ-P600 MZ-P150
Application:
Metal powder injection molding (MIM) products, structural parts, cemented carbide, copper sleeves, gears, unidirectional devices, ... and other powder metallurgical product blanks and sintered products.
Principle:
According to ASTM B311, B328; MPIF 42, 57; JIS Z2505, Z2506, GB/T5163, ISO2738. It can be applied to the boiling method and the vacuum saturation method to measure, adopt the Archimedes principle buoyancy method, and directly read the measured value accurately.
Extraction method of oil content:
A. Sagelite extraction equipment
B. Rapid combustion method
C. Nitrogen electrothermal drying method
D. Ultrasonic oscillation method

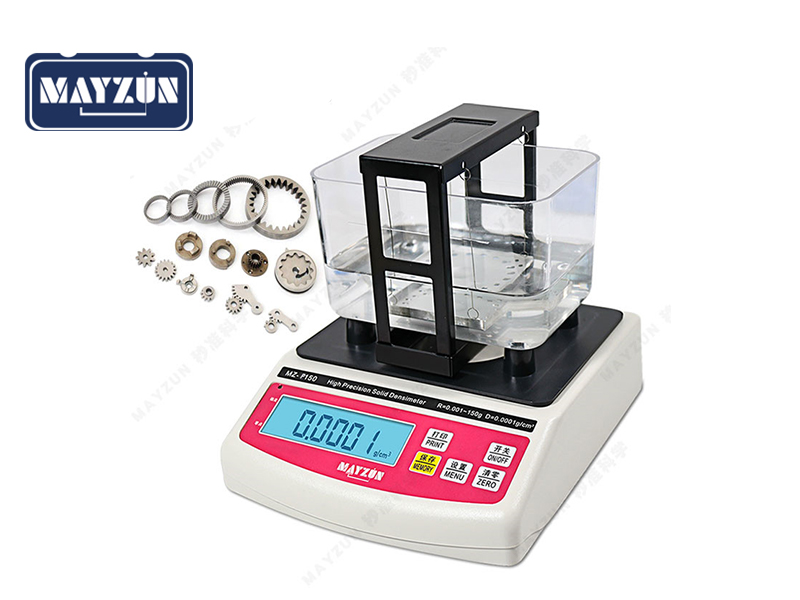

MZ-P300/P600 Accuracy:0.001g/cm³ | MZ-P150（Equipped with windproof and dustproof cover） Accuracy:0.0001g/cm³ |
Patented product: Intelligent MAY-Entris120 / MAY-Entris220 Accuracy:0.0001g/cm³
| MZ-P3000（Size can be customized on demand） Accuracy: 0.001g/cm³
|
Features:
1. Digital display direct reading, without manual calculation, direct display of density and volume.
2. Powder metallurgy products, blanks, oil-impregnated bearings and other similar products can all be measured quickly.
3. The Japanese NMB sensor is used for accurate measurement, easy operation, stable and durable.
4. It has the function of actual water temperature compensation, which can adapt to changes in the test environment.
5. The density of the medium can be set, water is used as the medium, and other liquid mediums can also be used.
6. Adopting one-piece high-capacity measuring platform, corrosion-resistant and drop-proof, free replacement for life.
7. Mayzun-Smart multi-group sample measurement system is optional, which can measure 10 groups of data at a time to achieve high-efficiency measurement, print A4 standard data reports with one key, and store more than 100,000 groups of data.
8. With RS-232C communication interface, it is convenient to connect PC and printer. MZ-P1 printer can be selected to print measurement data
MZ-P150 function description:
Function 1: Powder metallurgy products can directly read volume density, effective porosity, wet density, volume
Function 2: Can directly read the oil content
Function 3: Use the Archimedes program to directly sinter the density of the product. Note: For small parts (weight less than 1g, such as mobile phone card holders, mobile phone motors, etc.), please select the high-precision intelligent MAY-ENTRIS120 series
MZ-P300/P600 function description:
Function 1: It can directly read the bulk density of powder metallurgy products and the effective porosity, wet density and volume of sintered oil-bearing alloys.
Function 2: The oil content can be directly read.
Remarks: For small parts (parts weighing less than 5g), please select the high-precision intelligent MAY-ENTRIS120 series
Preview of intelligent MAY-ENTRIS120 series measuring system:
Technical parameters:
(Note: A large range of large-scale density meters can be customized according to customer needs, and the maximum can be customized 6-30kg)
Brand | MAYZUM（Warranty for 3 years） | |||||
Model | MZ-P300 | MZ-P600 | MZ-P150 | MAY-Entris120 | ||
Weight accuracy & Max load | 0.005g / 300g | 0.01g / 600g | 0.001g / 150g | 0.0001g / 120g | ||
Density Precision | 0.001 g/cm3 | 0.001 g/cm3 | 0.0001 g/cm3 | |||
Measuring efficiency | Test 1 set of samples at a time | Test 10 set of samples at a time | ||||
Density Range | 0.001~99.999g/cm3 | |||||
Water absorption porosity and oil content accuracy | 0.01% | |||||
Principle | Archimedes principle of drainage | |||||
Testing Time | About 5 seconds | |||||
Testing Procedure | 1. Put the sample on the measuring table and press MEMORY to save 2. Put the sample which saturated water treatment on the measuring table and press MEMORY key to save 3.Put the sample which saturated water treatment into the water measuring table and press the MEMORY key to save it. The instrument directly displays the density, volume, porosity etc. Remarks: Refer to the manual for the measurement of finished products and oil content | |||||
Results Displayed | Oil content, bulk density, effective porosity, wet density, volume | |||||
Parameter Setting | Water temperature setting, medium liquid density setting | |||||
Calibration | One-key automatic Calibration | |||||
Output Method | RS-232C standard communication interface, convenient for test data output and printing | |||||
Temperature and Humidity Range | Allowable ambient temperature: 0~45℃; Allowable relative humidity: within 80% | |||||
Power Supply | AC~220V / 50HZ（Export power supply needs to be customized, please indicate before ordering） | |||||
Tank Size | 150*100*90mm | |||||
Standard accessories | ①Host computer ②Sink ③Measuring table ④Tweezers ⑤Bubble dropper ⑥Weight ⑦Power transformer ⑧Particle measuring accessories ⑨Floating material measuring accessories | |||||
Optional accessories | MZ-P1 printer MAYZUM-Smart v 6.0 Porous material density water absorption porosity measurement system | |||||
Other Parameters | Outer packing size: 595*295*530mm Tester size: 345*225*330mm Net weight : 7.5kg Gross weight: 9.5kg HS code : 90160090 | |||||
